Parametrically driven resonator

One of the most famous effects displaced by nonlinear oscillators is parametric resonance, where the frequency of the linear resonator is modulated in time Phys. Rev. E 94, 022201 (2016). In the following we analyse this system, governed by the equations

\ddot{x} (t) + γ \dot{x} (t) + Ω^{2} (1 - λ \cos (2 ω t + ψ)) x + α x^{3} + η x^{2} \dot{x} + F_{d} (t) = 0

where for completeness we also considered an external drive term $F_{d} (t) = F \cos (ω t + θ)$ and a nonlinear damping term $η x^{2} \dot{x}$

To implement this system in Harmonic Balance, we first import the library

julia

using HarmonicBalance, Plots

Subsequently, we type define parameters in the problem and the oscillating amplitude function $x (t)$ using the variables macro from Symbolics.jl

julia

@variables ω₀ γ λ F η α ω t x(t)

natural_equation =
    d(d(x, t), t) +
    γ * d(x, t) +
    (ω₀^2 - λ * cos(2 * ω * t)) * x +
    α * x^3 +
    η * d(x, t) * x^2
forces = F * cos(ω * t)
diff_eq = DifferentialEquation(natural_equation + forces, x)

System of 1 differential equations
Variables:       x(t)
Harmonic ansatz: x(t) => ;

Differential(t)(Differential(t)(x(t))) + F*cos(t*ω) + Differential(t)(x(t))*γ + x(t)*(-cos(2t*ω)*λ + ω₀^2) + (x(t)^3)*α + (x(t)^2)*Differential(t)(x(t))*η ~ 0

Note that an equation of the form

m \ddot{x} + m ω_{0}^{2} (1 - λ \cos (2 ω t + ψ)) x + γ \dot{x} + α x^{3} + η x^{2} \dot{x} = F \cos ω t

can be brought to dimensionless form by rescaling the units as described in Phys. Rev. E 94, 022201 (2016).

We are interested in studying the response of the oscillator to parametric driving and forcing. In particular, we focus on the first parametric resonance of the system, i.e. operating around twice the bare frequency of the undriven oscillator $ω$ while the frequency of the external drive is also $ω$ . For this purpose, we consider a harmonic ansatz which contains a single frequency: $x (t) \approx u \cos (ω t) + v \sin (ω t)$ . In HarmonicBalance, we can do this via add_harmonic command:

julia

add_harmonic!(diff_eq, x, ω);

and replacing this by the time independent (averaged) equations of motion. This can be simply done by writing

julia

harmonic_eq = get_harmonic_equations(diff_eq)

A set of 2 harmonic equations
Variables: u1(T), v1(T)
Parameters: ω, α, γ, ω₀, λ, η, F

Harmonic ansatz:
x(t) = u1(T)*cos(ωt) + v1(T)*sin(ωt)

Harmonic equations:

F - (1//2)*u1(T)*λ + (2//1)*Differential(T)(v1(T))*ω + Differential(T)(u1(T))*γ - u1(T)*(ω^2) + u1(T)*(ω₀^2) + v1(T)*γ*ω + (3//4)*(u1(T)^3)*α + (3//4)*(u1(T)^2)*Differential(T)(u1(T))*η + (1//2)*u1(T)*Differential(T)(v1(T))*v1(T)*η + (3//4)*u1(T)*(v1(T)^2)*α + (1//4)*(v1(T)^2)*Differential(T)(u1(T))*η + (1//4)*(u1(T)^2)*v1(T)*η*ω + (1//4)*(v1(T)^3)*η*ω ~ 0

Differential(T)(v1(T))*γ + (1//2)*v1(T)*λ - (2//1)*Differential(T)(u1(T))*ω - u1(T)*γ*ω - v1(T)*(ω^2) + v1(T)*(ω₀^2) + (1//4)*(u1(T)^2)*Differential(T)(v1(T))*η + (3//4)*(u1(T)^2)*v1(T)*α + (1//2)*u1(T)*v1(T)*Differential(T)(u1(T))*η + (3//4)*Differential(T)(v1(T))*(v1(T)^2)*η + (3//4)*(v1(T)^3)*α - (1//4)*(u1(T)^3)*η*ω - (1//4)*u1(T)*(v1(T)^2)*η*ω ~ 0

The output of these equations are consistent with the result found in the literature. Now we are interested in the linear response spectrum, which we can obtain from the solutions to the averaged equations (rotating frame) as a function of the external drive, after fixing all other parameters in the system. A call to get_steady_states then retrieves all steadystates found along the sweep employing the homotopy continuation method, which occurs in a complex space (see the nice HomotopyContinuation.jl docs)

1D parameters

We start with a varied set containing one parameter, $ω$ ,

julia

fixed = (ω₀ => 1.0, γ => 1e-2, λ => 5e-2, F => 1e-3, α => 1.0, η => 0.3)
varied = ω => range(0.9, 1.1, 100)

result = get_steady_states(harmonic_eq, varied, fixed)

A steady state result for 100 parameter points

Solution branches:   5
   of which real:    5
   of which stable:  3

Classes: stable, physical, Hopf

In get_steady_states, the default method WarmUp() initiates the homotopy in a generalised version of the harmonic equations, where parameters become random complex numbers. A parameter homotopy then follows to each of the frequency values $ω$ in sweep. This offers speed-up, but requires to be tested in each scenario against the method TotalDegree, which initializes the homotopy in a total degree system (maximum number of roots), but needs to track significantly more homotopy paths and there is slower.

After solving the system, we can save the full output of the simulation and the model (e.g. symbolic expressions for the harmonic equations) into a file

julia

HarmonicBalance.save("parametron_result.jld2", result);

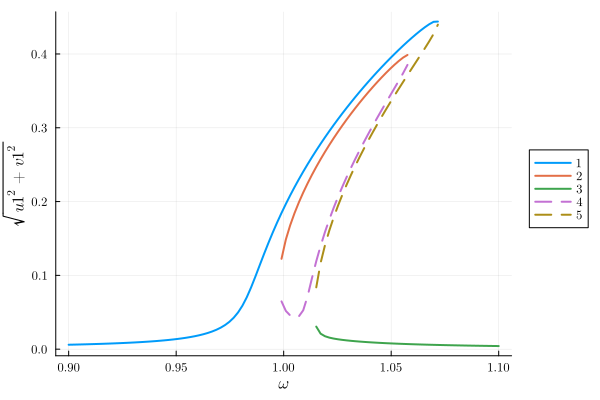

During the execution of get_steady_states, different solution branches are classified by their proximity in complex space, with subsequent filtering of real (physically acceptable solutions). In addition, the stability properties of each steady state is assessed from the eigenvalues of the Jacobian matrix. All this information can be succinctly represented in a 1D plot via

julia

plot(result; x="ω", y="sqrt(u1^2 + v1^2)")

The user can also introduce custom classes based on parameter conditions via classify_solutions!. Plots can be overlaid and use keywords from Plots, MarkdownAST.LineBreak()

julia

classify_solutions!(result, "sqrt(u1^2 + v1^2) > 0.1", "large")
plot(result, "sqrt(u1^2 + v1^2)"; class=["physical", "large"], style=:dash)
plot!(result, "sqrt(u1^2 + v1^2)"; not_class="large")

Alternatively, we may visualise all underlying solutions, including complex ones,

julia

plot(result, "sqrt(u1^2 + v1^2)"; class="all")

2D parameters

The parametrically driven oscillator boasts a stability diagram called "Arnold's tongues" delineating zones where the oscillator is stable from those where it is exponentially unstable (if the nonlinearity was absence). We can retrieve this diagram by calculating the steady states as a function of external detuning $δ = ω_{L} - ω_{0}$ and the parametric drive strength $λ$ .

To perform a 2D sweep over driving frequency $ω$ and parametric drive strength $λ$ , we keep fixed from before but include 2 variables in varied

julia

fixed = (ω₀ => 1.0, γ => 1e-2, F => 1e-3, α => 1.0, η => 0.3)
varied = (ω => range(0.8, 1.2, 50), λ => range(0.001, 0.6, 50))
result_2D = get_steady_states(harmonic_eq, varied, fixed);
