Introduction: linear response

In HarmonicBalance.jl, the stability and linear response are treated using the LinearResponse module.

Example: driven Duffing resonator

Here we calculate the white noise response of a simple nonlinear system. A set of reference results may be found in Huber et al. in Phys. Rev. X 10, 021066 (2020). The code is also available as a Jupyter notebook.

We start by defining the Duffing oscillator

using HarmonicBalance
@variables α, ωF, ω0, F, t, q(t), γ, Γ; # declare constant variables and a function q(t)

# define ODE
diff_eq = DifferentialEquation(d(q,t,2) + 2*Γ*d(q,t) + ω0^2*q + γ*q^3 ~ F*cos(ωF*t), q)

# specify the ansatz q = u(T) cos(ωF*t) + v(T) sin(ωF*t)
add_harmonic!(diff_eq, q, ωF)

# implement ansatz to get harmonic equations
harmonic_eq = get_harmonic_equations(diff_eq)

Linear regime

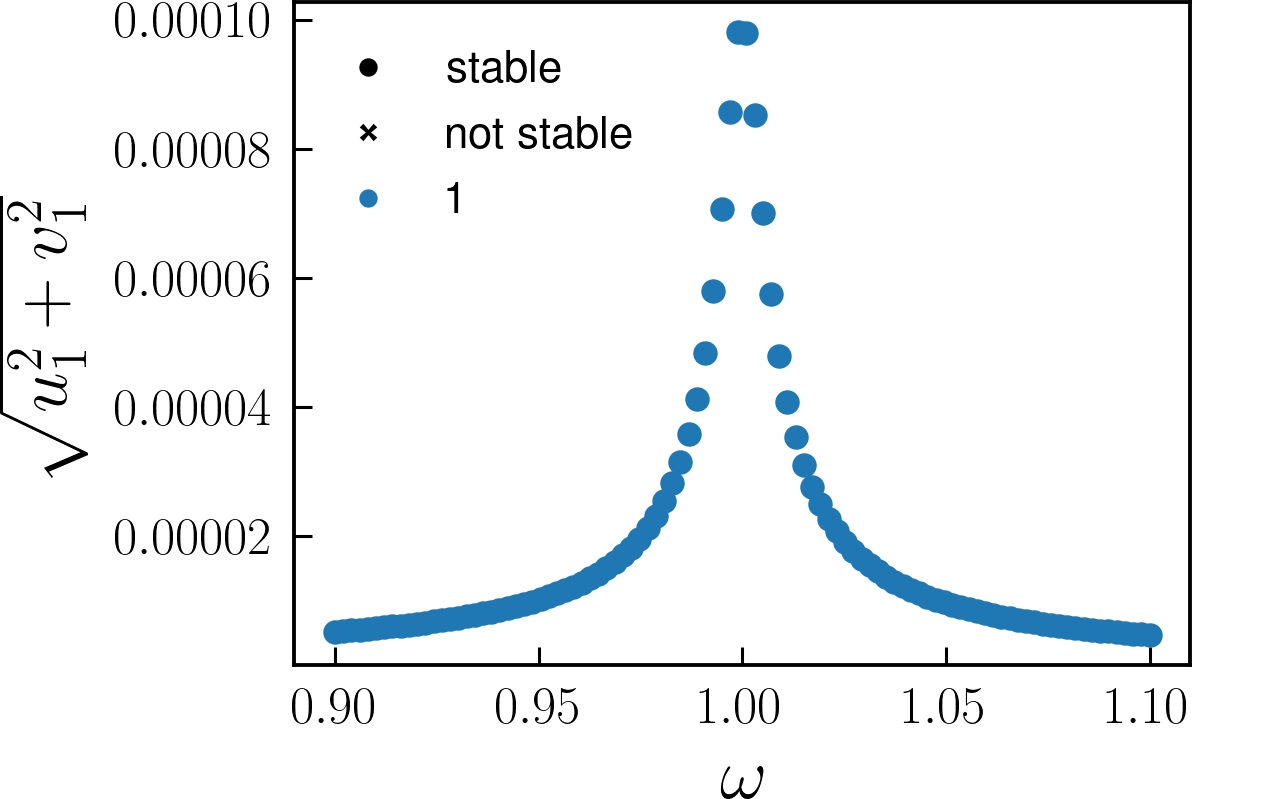

When driven weakly, the Duffing resonator behaves quasi-linearly, i.e, its response to noise is independent of the applied drive. We see that for weak driving, $F = 10^{-6}$, the amplitude is a Lorentzian.

fixed = (α => 1, ω0 => 1.0, γ => 1E-2, F => 1E-6)   # fixed parameters
swept = ω => LinRange(0.9, 1.1, 100)           # range of parameter values
solutions = get_steady_states(harmonic_eq, swept, fixed)

plot_1D_solutions(solutions, x="ω", y="sqrt(u1^2 + v1^2)")

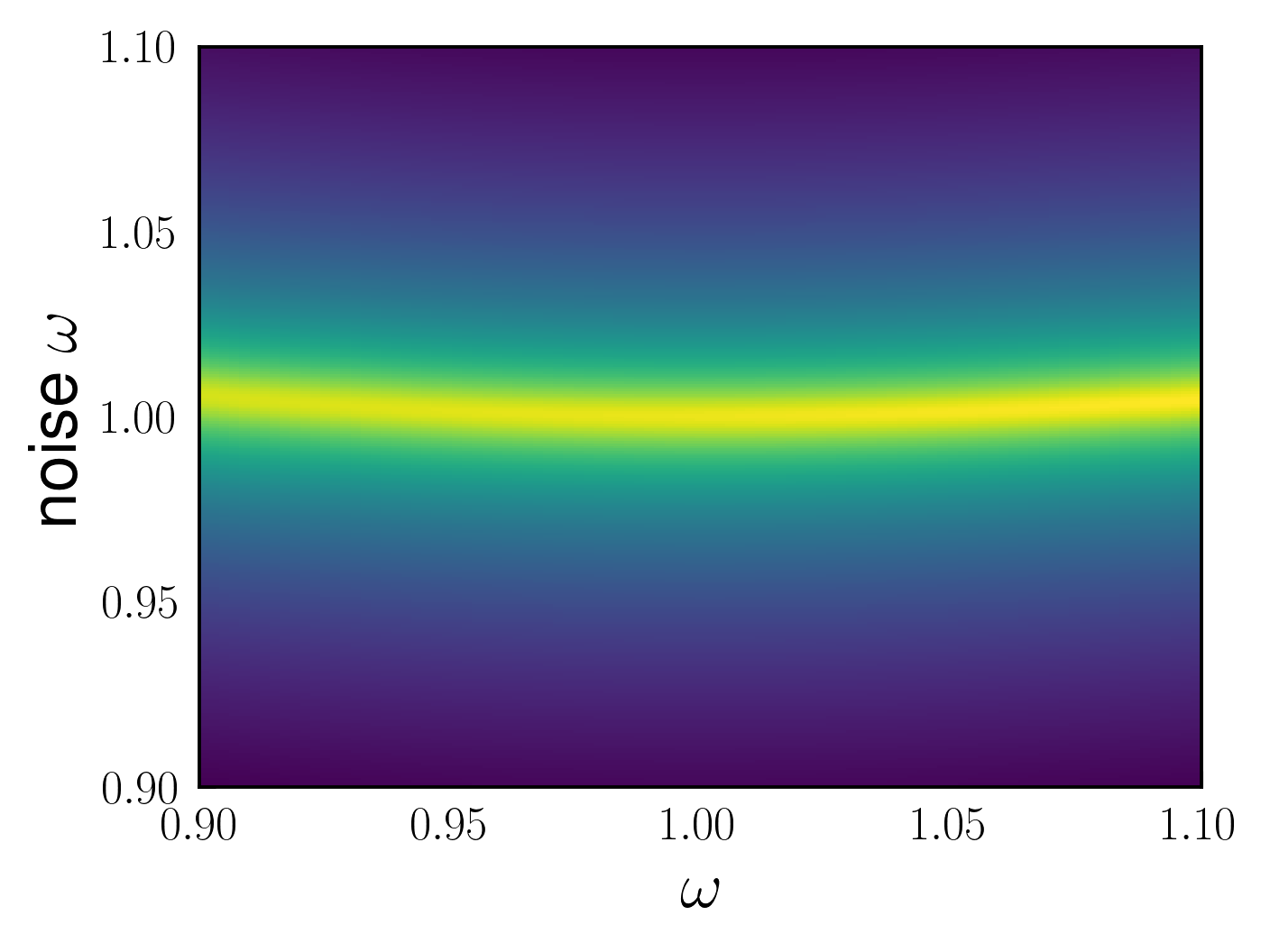

⠀ The linear response is obtained with plot_jacobian_spectrum, note that the branch number and the variable (here x) must be specified. The response has a peak at $\omega_0$, irrespective of $\omega$ :

HarmonicBalance.LinearResponse.plot_jacobian_spectrum(solutions, x,
    Ω_range=LinRange(0.9, 1.1, 300), branch=1, logscale=true)

⠀ Note the slight "bending" of the noise peak with $\omega$ - this is given by the failure of the Jacobian to capture response far-detuned from the drive frequency. More on this point will follow in a future example.

Nonlinear regime

For strong driving, matters get more complicated. Let us now use a drive $F = 10^{-2}$ :

fixed = (α => 1, ω0 => 1.0, γ => 1E-2, F => 1E-2)   # fixed parameters
swept = ω => LinRange(0.9, 1.1, 100)           # range of parameter values
solutions = get_steady_states(harmonic_eq, swept, fixed)

plot_1D_solutions(solutions, x="ω", y="sqrt(u1^2 + v1^2)");

⠀

The amplitude is the well-known Duffing curve. Let's see the linear response of the two stable branches, 1 and 2.

LinearResponse.plot_jacobian_spectrum(solutions, x,
    Ω_range=LinRange(0.9,1.1,300), branch=1, logscale=true);

LinearResponse.plot_jacobian_spectrum(solutions, x,
    Ω_range=LinRange(0.9,1.1,300), branch=2, logscale=true);

⠀ In branch 1 the linear response to white noise shows more than one peak. This is a distinctly nonlinear phenomenon, manifesting primarily at large amplitudes. Branch 2 is again quasi-linear, which stems from its low amplitude.

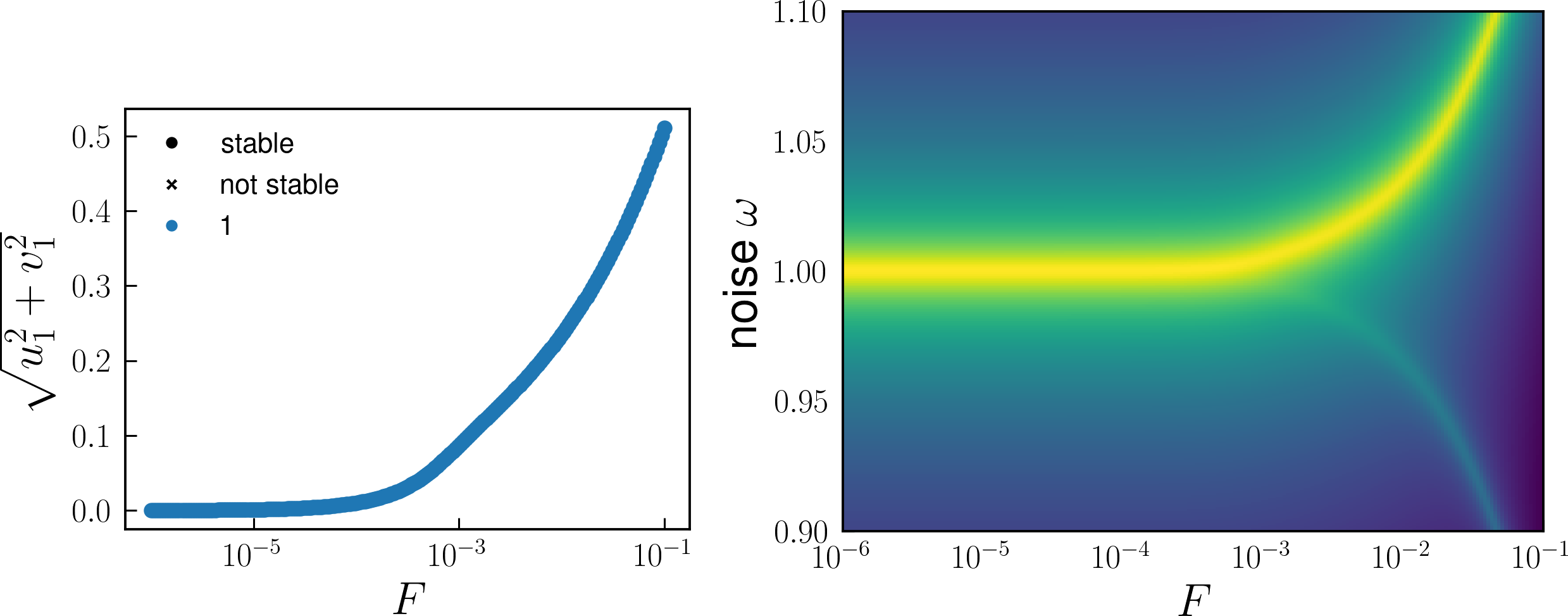

Following Huber et al., we may also fix $\omega = \omega_0$ and plot the linear response as a function of $F$. The response turns out to be single-valued over a large range of driving strengths. Using a log scale for the x-axis:

fixed = (α => 1., ω0 => 1.0, γ => 1E-2, ω => 1)   # fixed parameters
swept = F => 10 .^ LinRange(-6, -1, 200)           # range of parameter values
solutions = get_steady_states(harmonic_eq, swept, fixed)

plot_1D_solutions(solutions, x="F", y="sqrt(u1^2 + v1^2)");
HarmonicBalance.xscale("log") # use log scale on x

LinearResponse.plot_jacobian_spectrum(solutions, x,
    Ω_range=LinRange(0.9,1.1,300), branch=1, logscale=true);
HarmonicBalance.xscale("log")

⠀ We see that for low $F$, quasi-linear behaviour with a single Lorentzian response occurs, while for larger $F$, two peaks form in the noise response. The two peaks are strongly unequal in magnitude, which is an example of internal squeezing.
